Overview:

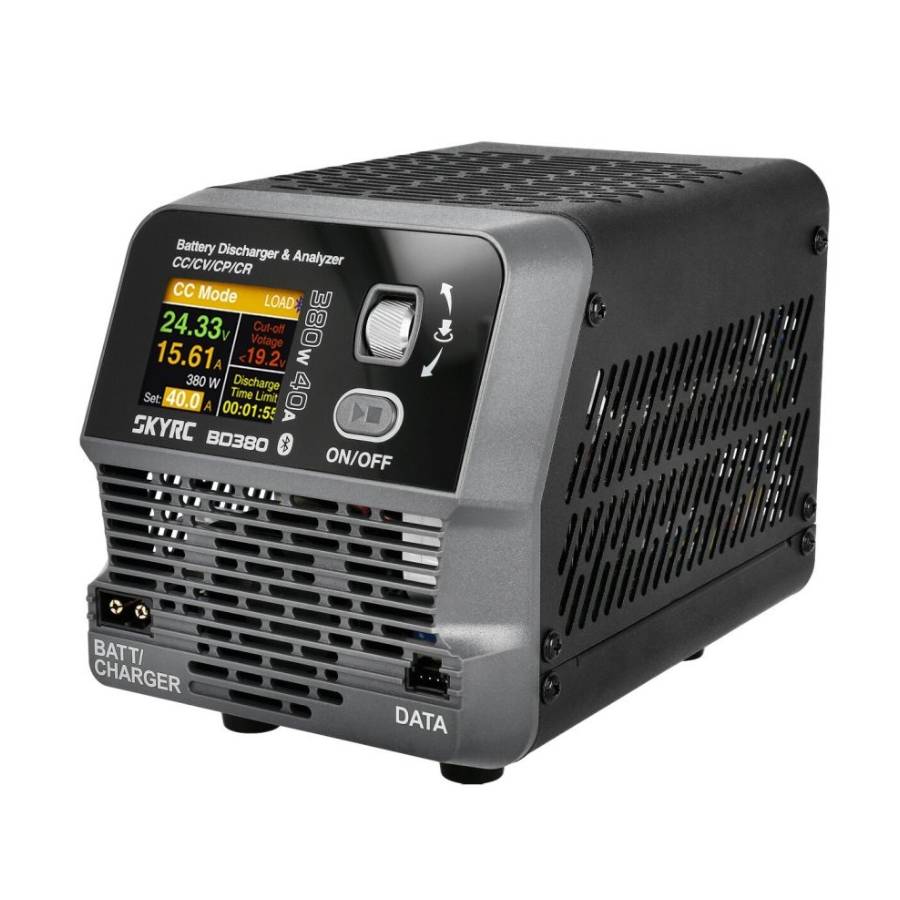

The SkyRC BD380 is a powerful battery discharger and analyser that can test, discharge, and measure the performance of various battery types, including those used in RC vehicles. It automatically initiates discharging when connected, removes the need for external power, and offers four operating modes (Constant Current, Constant Resistance, Constant Voltage, and Constant Power). It also features Bluetooth connectivity for app support and a colour display for monitoring discharge parameters.
When used with D200neo and T1000 chargers, it can significantly improve the discharge and charging efficiency of high currents. The BD380 is specially designed for remote control models to help you improve battery performance.
Features:
- Powerful Discharging: Capable of discharging at up to 40A or 380W.
- Four switchable discharge modes
- Battery Analysis: Measures and compares battery performance, helping users assess battery health and choose the best batteries for their applications.
- Versatile: Can handle various battery types, chemistries, and cell numbers up to 30V.
- Convenient: Discharging starts automatically when connected and doesn't require an external power supply.
- App Support: Bluetooth connectivity allows for remote control and monitoring via a smartphone app.
- Safety: Over-temperature, over-current, and over-voltage protection is built-in.
- User-Friendly: Features a clear colour display and intuitive controls for easy operation.
- Cooling System: This system has an efficient cooling system to prevent overheating during high-power discharges.
Specification:
- Discharge Power: 380W
- Constant Current: 0.3-40 Amp
- Display Specs: 1.77in TN Display 160 x 128px
- Input Voltage Type: DC
- Input Voltage Range: 3-30V
- Length: 159.7mm
- Height: 121.6mm
- Width: 110mm
- Weight: 1.1kg
Included:
- 1x SkyRC BD380 Battery Discharger & Analyzer
- Accessories
