Overview:

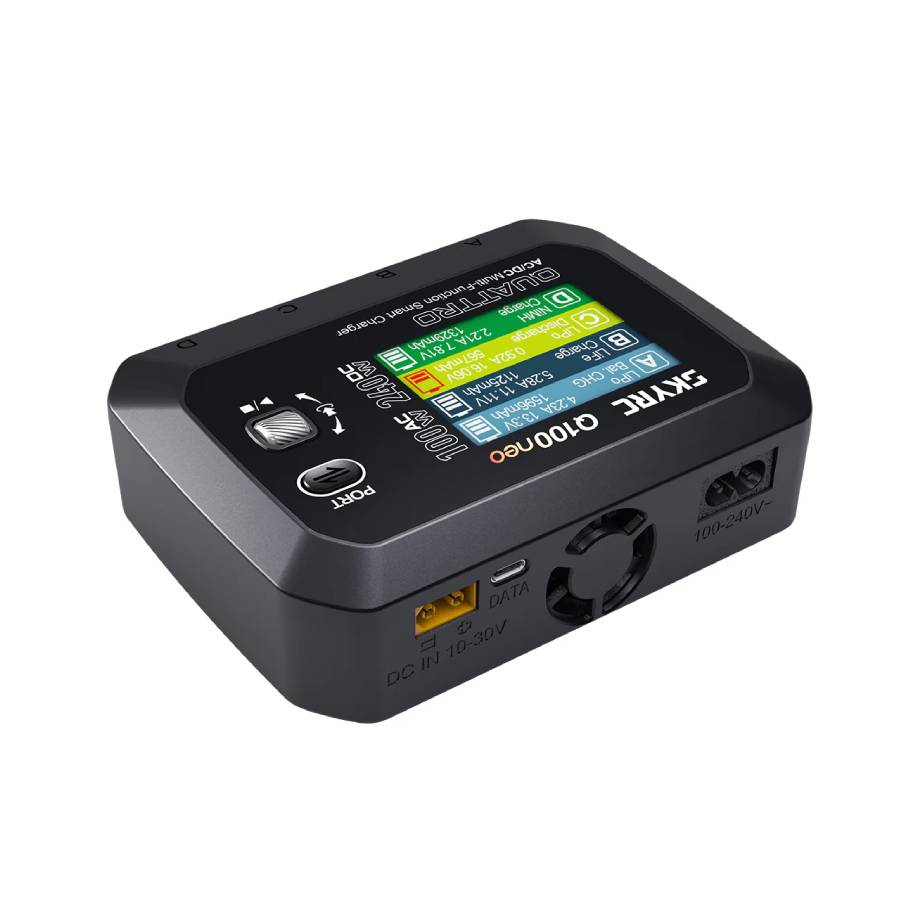

The SkyRC Q100 Neo is a compact four-channel AC/DC charger designed for RC users who need the flexibility to charge multiple batteries efficiently from a single unit. With four independent outputs, it allows different battery types and capacities to be charged simultaneously, making it particularly well suited to FPV pilots, RC car users and aircraft modellers running multiple packs.
A key feature of the Q100 Neo is its intelligent power distribution system, which dynamically allocates available power across all active channels. When one battery completes charging, the charger automatically redistributes power to the remaining ports, improving overall efficiency and reducing total charge time.
The charger supports a wide range of battery chemistries, including LiPo, LiHV, LiFe, Li-ion, NiMH, NiCd and Pb, covering most common RC applications. An integrated balancer ensures accurate cell balancing during charging, while enhanced discharge capability allows faster discharging when using both the main and balance ports together.
A clear 2.8inch colour display provides straightforward navigation and real-time monitoring of charging status, while the compact design makes it suitable for use on the bench, at the track or out at the flying field. With both AC and DC input support, the Q100 Neo offers flexibility for home use or portable setups powered from an external supply.
Features:

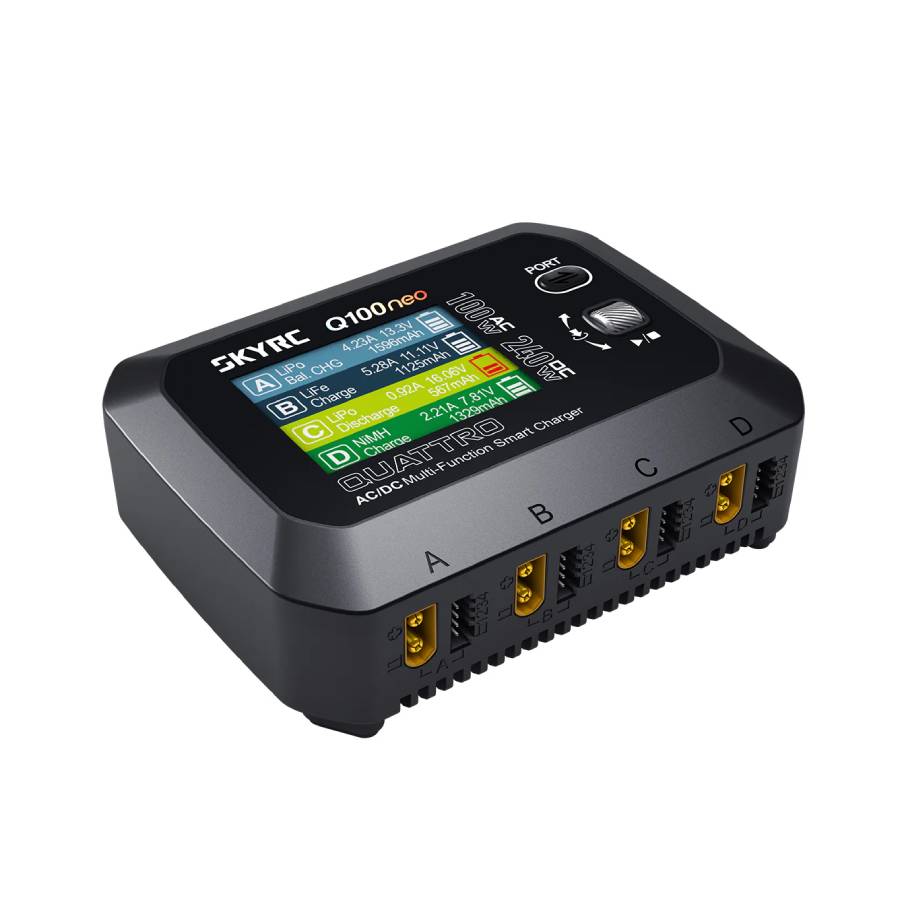

- Four independent charging outputs for simultaneous battery charging
- Intelligent power distribution that reallocates power between active channels
- Compatible with LiPo, LiHV, LiFe, Li-ion, NiMH, NiCd and Pb batteries
- Integrated cell balancer for accurate multi-cell charging

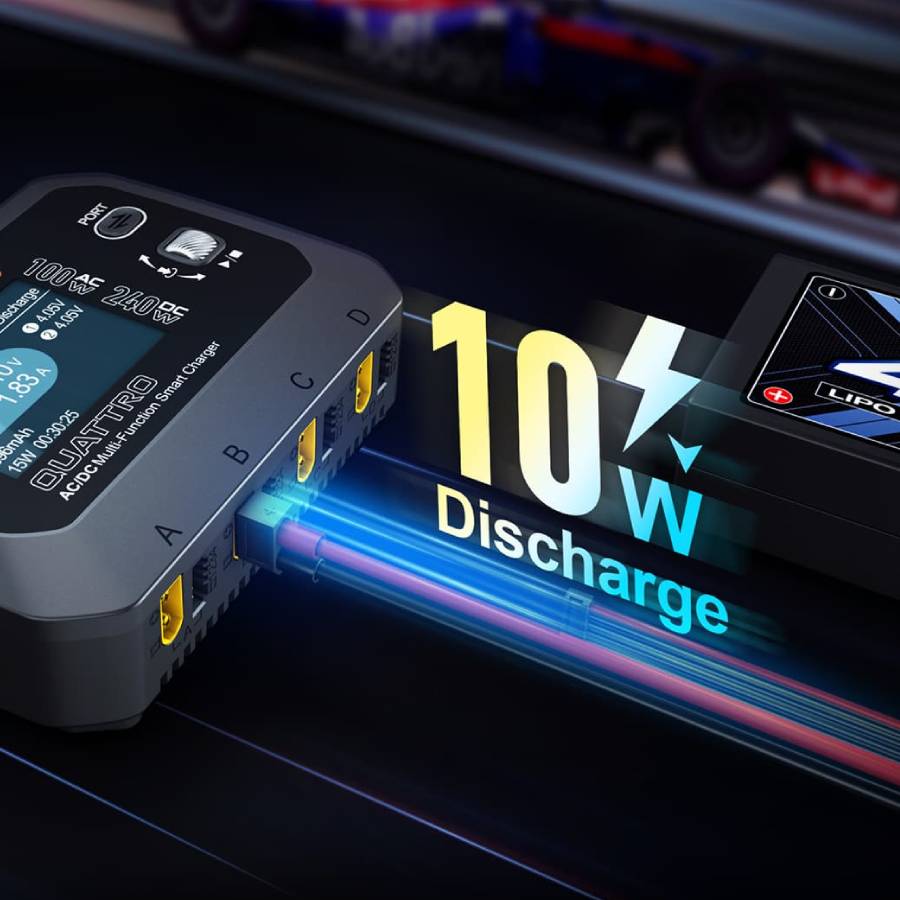

- Enhanced discharge capability using main and balance ports together
- 2.8inch colour display with clear, real-time charge data
- Multiple charge modes including balance, storage and cycle modes
- Compact design suitable for bench, track or field use

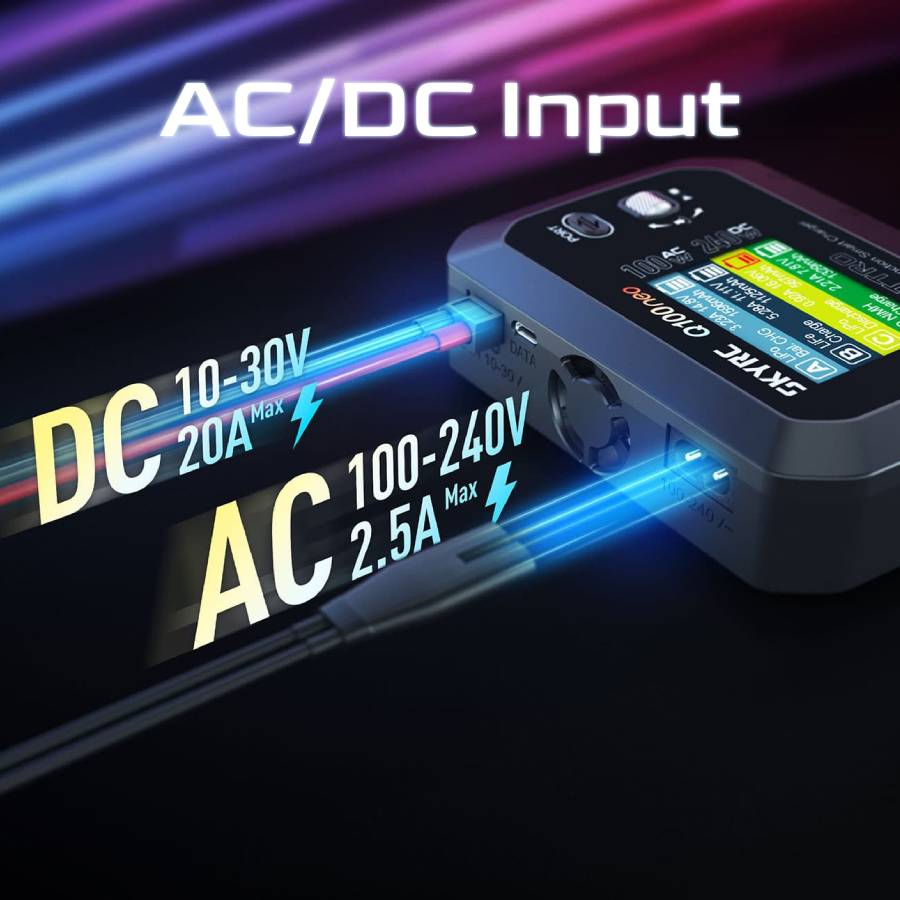

- AC and DC input support for flexible power options
Specification:
- SkyRC Q100 Neo
- Input voltage: AC100–240V / DC10–30V
- Charge power (AC): max.100W
- Charge power (DC): max.240W (4x60W)

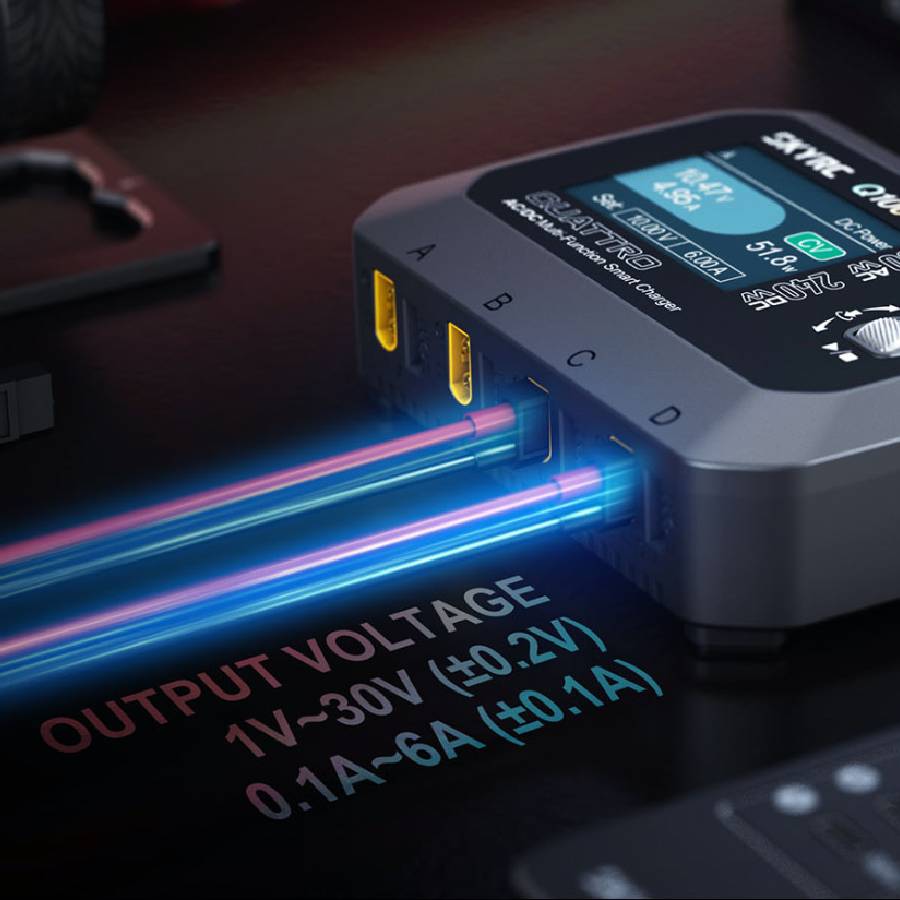

- Charge current: 0.1–6.0A
- Balance current: max.600mA
- Discharge power: 5W (main port) / 10W (balance port, LiPo/4S) / up to 15W combined
- Supported battery types: LiPo / LiHV / LiFe / Li-ion: 1–4S / NiMH / NiCd: 1–8S / Pb: 3S/6S
- Display: 2.8inch colour screen (240x320 resolution, 262K colours)
- Dimensions: 140x108x43.5mm
- Weight: approx.491g
- Operating temperature: 0°C–40°C
Included:
- 1x SkyRC Q100 Neo
- 1x UK Mains Plug
